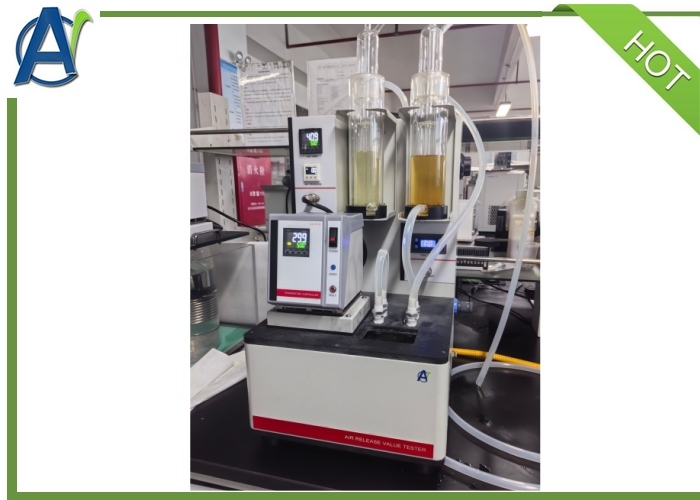

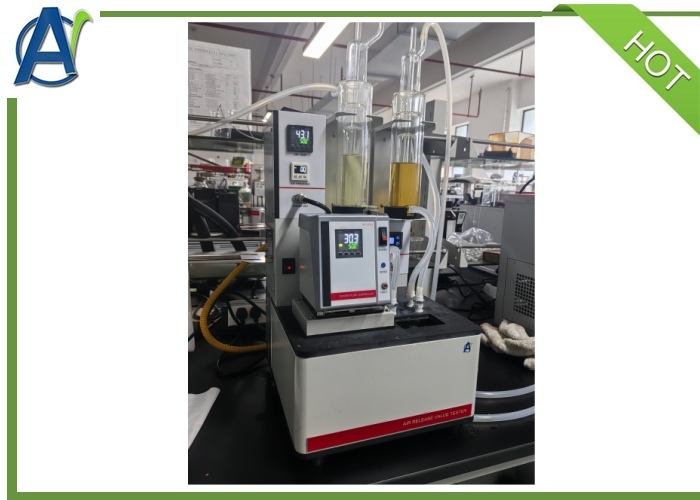

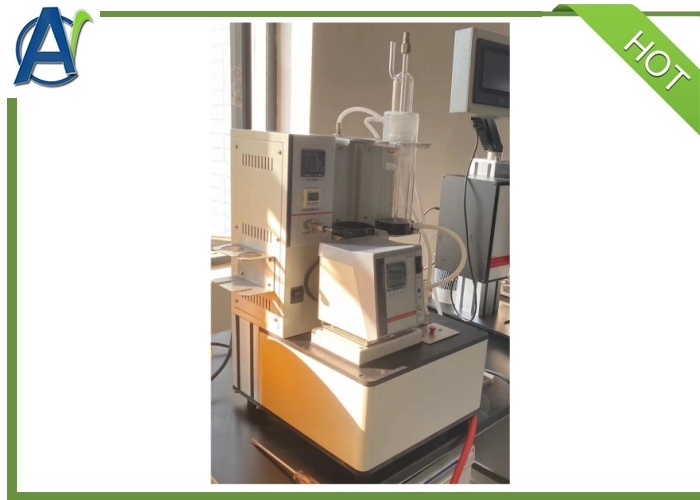

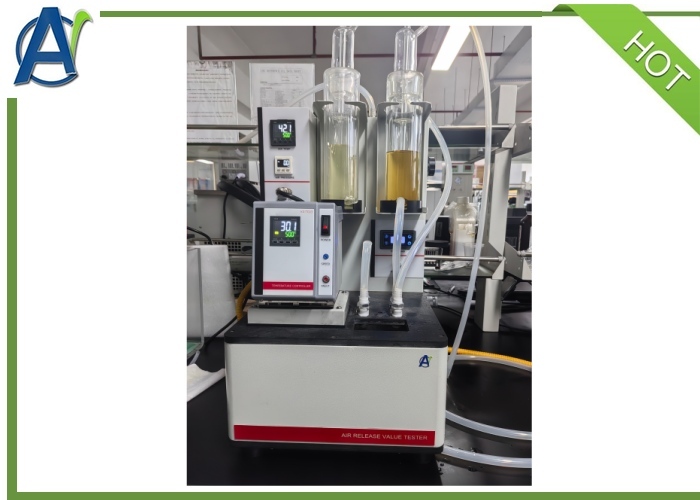

ASTM D3427 SH/T0308 Automatic Lubricant Air Release Value Tester

Temel bilgi

Menşe yeri:	Çin
Marka adı:	AI
Sertifika:	ISO9001
Model numarası:	ARV-II

Min sipariş miktarı:	1 takım
Fiyat:	USD$3,000~5,000
Ambalaj bilgileri:	kontrplak durumda
Teslim süresi:	30 gün
Ödeme koşulları:	T/T, Western Union, L/C
Yetenek temini:	ayda 20 takım

En iyi fiyat Şimdi başvurun

Garanti:	1tam Yıl	Başvuru:	yağ testi
Dil:	İngilizce	OEM / DOM:	Mevcut
Sıcaklık kontrol aralığı:	Ortam~80±1°C	İşlev:	Yağların Sürüklenen Havayı Ayırma Yeteneğinin Test Edilmesi
Test Standardı:	ASTM D3427,SH/T0308	Güç kaynağı:	AC220±10% 50Hz±5%
Basınç göstergesi:	Dijital	Çalışma basıncı:	19,6kpa
Basınç kontrolü:	Hassas Basınç Ayar Vanası	Operasyon:	Manuel
Görüntülemek:	neden olmuş	Taşınabilir:	Taşınamaz
Tip:	Hava Tahliye Değeri Ölçer	Zamanlama Modu:	dijital zamanlayıcı
Isıtma Modu:	Elektrikli Çubuk
Vurgulamak:	ASTM D3427 lubricant air release tester , SH/T0308 automatic oil tester , lubricant air release value equipment

I. ASTM D3427 Lubricating Grease Air Release Properties Tester

The Air Release Properties Apparatus is suitable to test ability of oils to separate entrained air,such as turbine oil, hydraulic oil etc.

Heat the oil sample to temperature 25,50 or 75ºC,blow compressed air through the test oil,make make it stirred strongly.Air becomes small bubbles in the air,that is entrained air.After the air is stopped,the time required for the air entrained in the oil to reduce in volume to 0.2% is recorded as the air release time.

II. Main Features

1. Micro-computer processing and PID controlling,digitally display set and real temperature,accuracy 1ºC,Pt100 RTD temperature probe.

2. Working temperature range:ambient~80ºC,accuracy can adjust to ±0.1ºC

3. High precise air regulating valve,control pressure to 19.6 Kpa accurately.

4. Stainless steel constant water bath is corrosion resistant.

5. The Air Release Properties Tester uses LED display working pressure.

6. Each tap can be connected easily.

7. Timer can display time,manual timing is not needed.

8. The case is treated with Electrostatic spraying and high temperature baking,beautiful and elegant.

9. Independent air filtering and Voltage stabilizer,can reduce water and oil in air.

III. Specifications:

1	Applicable standard	SH/T0308, ASTM D3427, DIN51585, NFT60151 ,IP135
2	Power supply	AC220±10% 50Hz±5%
3	Heating mode	Electric bar
4	Temperature controlling range	ambient~80±1ºC,if using silicon oil,it can reach higher temperature.
5	Working pressure	19.6Kpa
6	Pressure controlling	Precise pressure regulating valve
7	Timing mode	Digital timer
8	Pressure display	Digital

FAQ

What's the delivery time?
About 30days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
