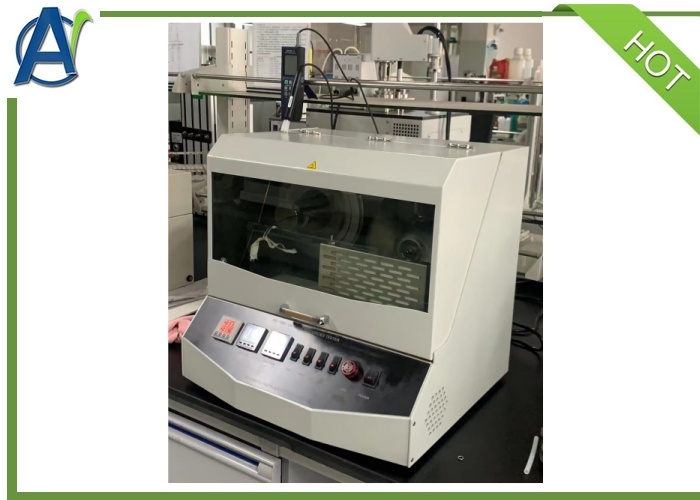

ASTM D1263 Grease Leakage Tendency Tester for Automotive Wheel Bearing

Temel bilgi

Menşe yeri:	Çin
Marka adı:	AI
Sertifika:	ISO9001
Model numarası:	AIC-1263

Min sipariş miktarı:	1 takım
Fiyat:	USD$3,000~4,000
Ambalaj bilgileri:	kontrplak durumda
Teslim süresi:	30 gün
Ödeme koşulları:	T/T, Western Union, L/C
Yetenek temini:	ayda 20 takım

En iyi fiyat Şimdi başvurun

Dil:	İngilizce	Garanti:	1tam Yıl
Test Standardı:	ASTM D1263,SH/T0326	marka:	Gelişmiş Araçlar
OEM / DOM:	Mevcut	Isıtma yöntemi:	Metal banyosu
Zamanlama yöntemi:	dijital zamanlayıcı	Zamanlama Aralığı:	0.01s ~ 99h99m
Sıcaklık kontrol aralığı:	Ortam~150°C±0,1°C	Motor hızı:	660 dev/dak±30 dev/dak
Sıcaklık denetleyicisi:	Omron	Ağırlık:	43Kg
Güç kaynağı:	220v, 50Hz	Toplam Güç:	1000W
Çalışma Pozisyonu:	2 Birim	İşlev:	Otomobil Tekerleği Rulmanı Gresinde Sızıntı Testi
Başvuru:	yağ testi
Vurgulamak:	ASTM D1263 grease leakage tester , automotive wheel bearing tester , grease leakage tendency test equipment

I. ASTM D1263 Grease Leakage Tendency Tester

Load the sample into the modified front wheel hub and shaft assembly, and let the hub and shaft run for a total of 360±5 min under the specified conditions. Measure the leakage of grease or oil, and observe the condition of the bearing surface at the end of the sample.

This Leakage Tendencies Test Apparatus is suitable for the determination of the leakage of automobile wheel bearing grease, and can be used to distinguish products with obviously different leakage characteristics.

II. Main Features

1. The Leakage Tendencies Test Apparatus adopts an integrated design with a timeless appearance and easy operation;

2. The unique box-type heating system of inserting the heat pipe rod into the casting body makes the heating speed fast and the temperature control precision is high;

3. The imported motor rotates, with low noise, stable speed, good mechanical performance and little wear;

4. The rotating hub and shaft assembly has a compact structure and small end clearance. The bearings are all imported components, which guarantees reliability and wear resistance;

5. Microcomputer temperature controller, digital display, accuracy ±0.5ºC PT100 sensor;

6. The Leakage Tendencies Test Apparatus adopts Digital display timer to record test time;

7. There is a thermometer hole on the shaft assembly;

8. Standard motor 660r/min±30r/min;

9. The total heating power of the two groups is 660W;

10. There is insulation cotton around the box body for heat insulation.

III. Specifications:

Applicable standards	ASTM D1263,SH/T0326
Heating method	Metal bath
Timing mode and range	Digital timer,0.01s~99h99m
Temperature controlling range	ambient~150ºC±0.1ºC
Temperature control mode	Imported PID
Motor speed	660r/min±30r/min
Weight	43KG
Power supply	1500w
Working power supply	AC220V/50HZ
Total power	1000W

FAQ

What's the delivery time?

About 30days.
What's your payment terms?

30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?

The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?

We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
