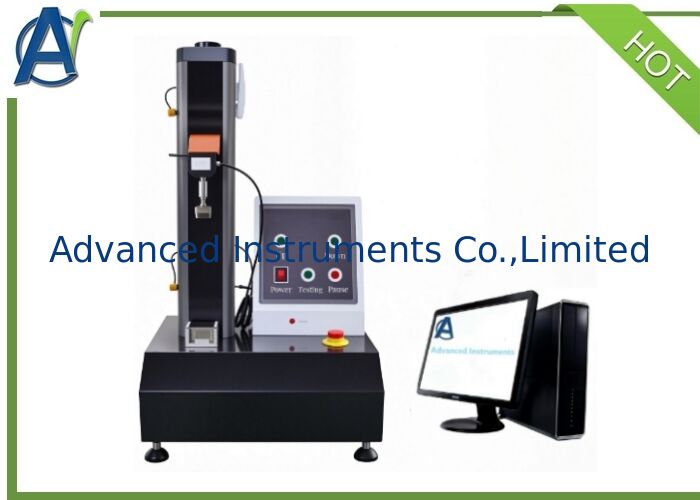

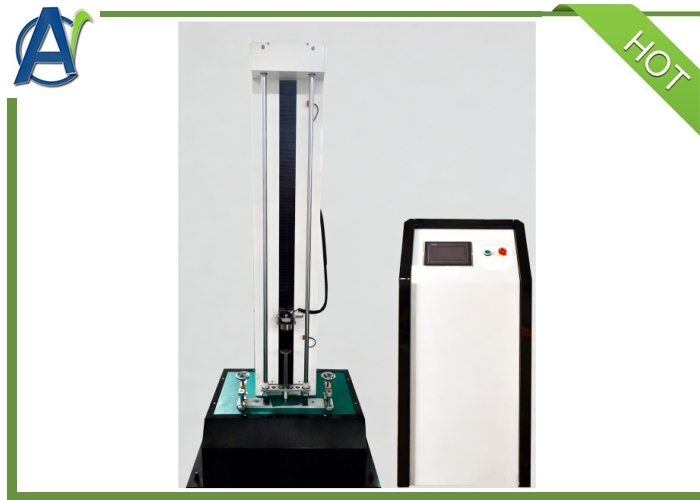

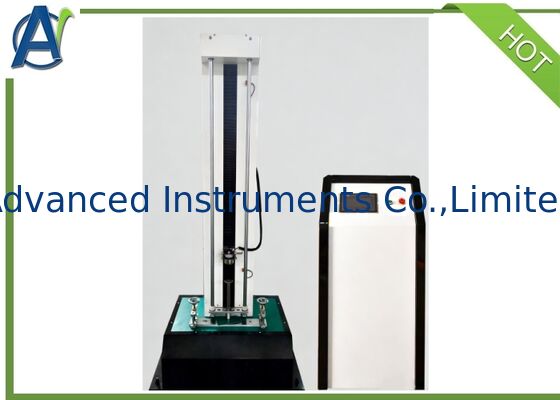

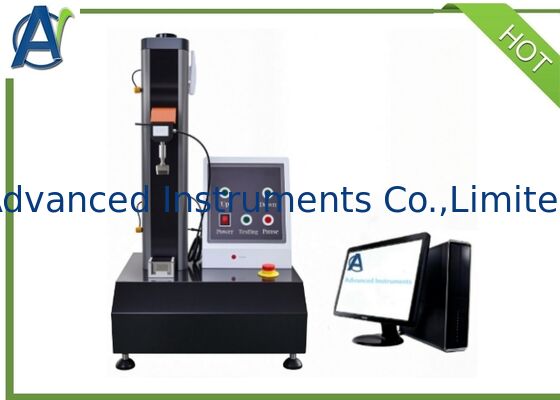

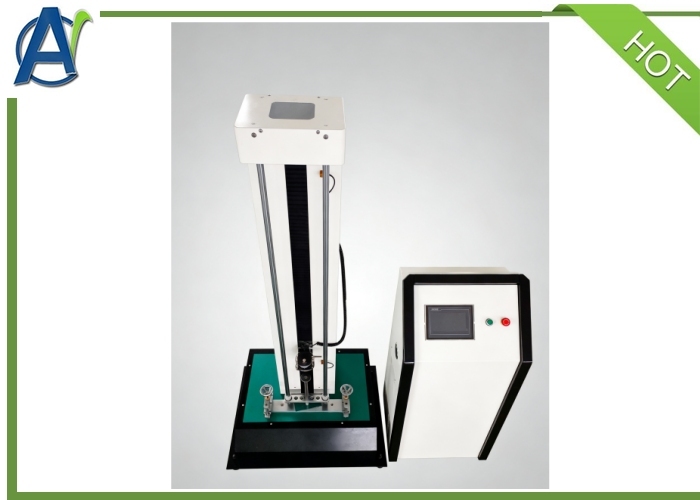

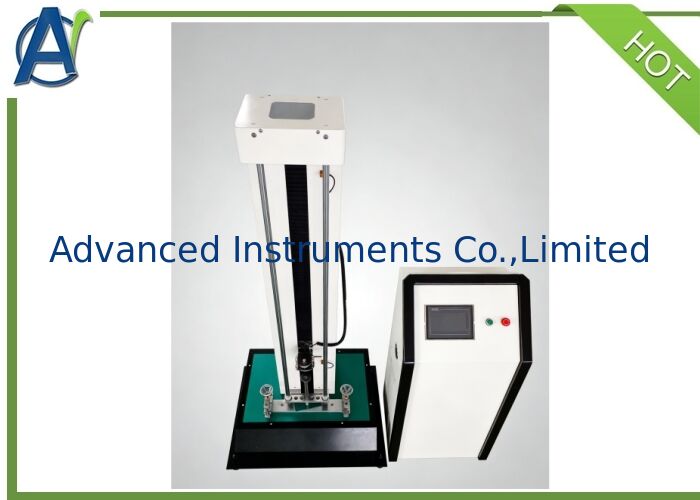

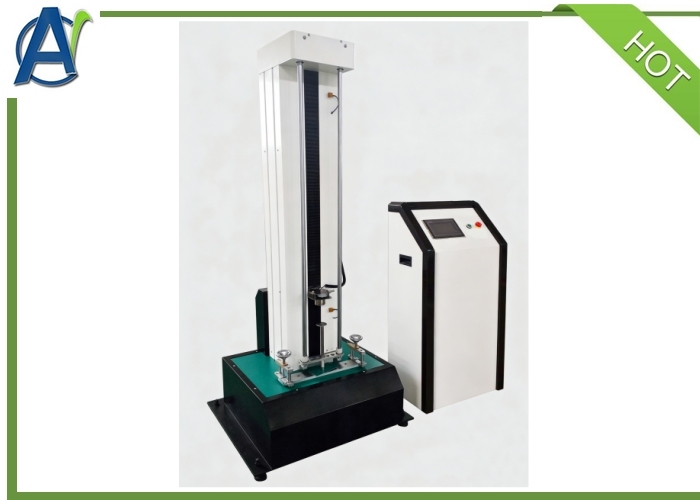

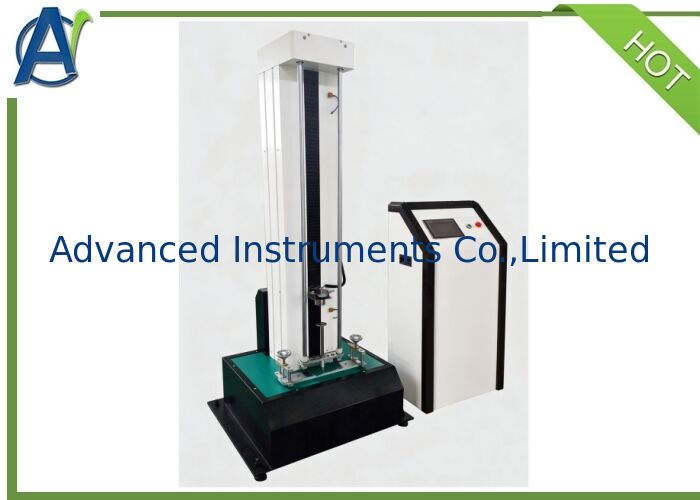

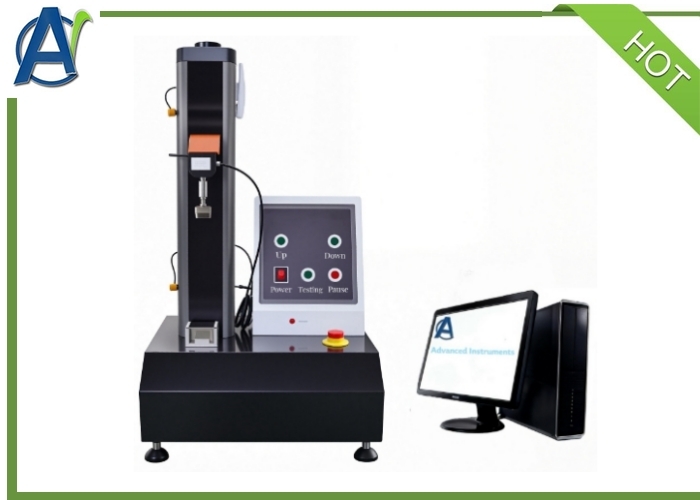

IEC 60794 High Precision Optical Cable Impact Testing Machine

IEC 60794 High Precision Optical Cable Impact Testing Machine
IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine IEC 60794 High Precision Optical Cable Impact Testing Machine
Temel bilgi
Menşe yeri: Çin
Marka adı: Advanced Instruments
Sertifika: IEC 60794-1-21:2020
Model numarası: AIC-21091
Min sipariş miktarı: 1 TAKIM
Fiyat: $3000~$10000
Ambalaj bilgileri: Kontrplak durumda
Teslim süresi: 60 GÜN
Ödeme koşulları: L/C,T/T,D/P
Yetenek temini: 20 Takım/ay
En iyi fiyat Şimdi başvurun
Servis Sonrası: 12 Saat 12 Ay İçinde Yanıt Garanti: 1tam Yıl
Taşıma Paketi: Kontrplak durumda test standardı: IEC 60794-1-21:2020
Güç kaynağı: AC220V,50/60Hz,5A darbe yüksekliği: 100-1000mm (ayarlanabilir)
Etki Oranı: 10 ~ 20 kez / dak, isteğe göre ayarlanabilir Etki sayısı: 1~9999, isteğe göre ayarlanabilir
Darbe başlığı braketi ağırlığı: 1.36kg Yuvarlak köşe yarıçapı: R12,5 mm
Ağırlık: 2,5kg×4; 0,5kg×5; 140g×1;
Vurgulamak:

IEC 60794

,

Optical Cable Impact Tester

,

Fiber Optic Cable Impact Testing Machine

General Introduction
1.1 Equipment overview
Optical cable impact tester is used to detect optical fiber cables to withstand impact capability. By applying the impact force, the requirements for qualified optical cables is that fibers are not broken, and fiber attenuation changes do not exceed the specified value of optical cable product detailed specifications, the cable sheath jackets do not crack, which meets the test requirements to optical cable of method E4.
Completely new design, optimized and upgraded based on the previous generation, impact height can be freely set, meet impact test requirements of all optical fiber cables up to 1000mm.
1.2 Related standards
  • IEC 60794-1-21:2020

IEC 60794 High Precision Optical Cable Impact Testing Machine 0

Features
  • Adopt Man-machine interface and PLC control
  • Xinje color screen displays test parameters and test data
  • Digital display, intuitive, easy to read
  • Automatically record the number of impacts and automatically stop the machine at the      end of the test
  • Xinje servo drive system, smooth transmission, reliable operation
  • The impact speed and the impact height can be set
  • Replaceable weight counterweight
Technical parameters
  • Impact height: 100-1000mm (settable)
  • Impact rate: 10~20 times / min, settable arbitrarily
  • Number of impact: 1~9999, settable arbitrarily
  • Impact head bracket weight: 1.36kg
  • Round corner radius of optical cable impact head: R12.5mm
  • Weight: 2.5kg×4,0.5kg×5,140g×1
  • Installed on a stable foundation with a levelness of ≤ 0.5/1000 and a space of no less than 1 meter left around
Technical specifications
  • Overall Dimensions: 730mm×510mm×1760mm
  •  Control cabinet: 600mm×400mm×1240mm
  • Power supply: AC 220V, 50/60Hz, Power:1KW
IEC 60794 High Precision Optical Cable Impact Testing Machine 1
FAQ
  1. What's the delivery time?
    About 60days.
  2. What's your payment terms?
    30% paid by T/T in advance,70% paid by by T/T before shipping.
  3. What's your guarantee terms?
    The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
  4. Can you supply training?
    We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
